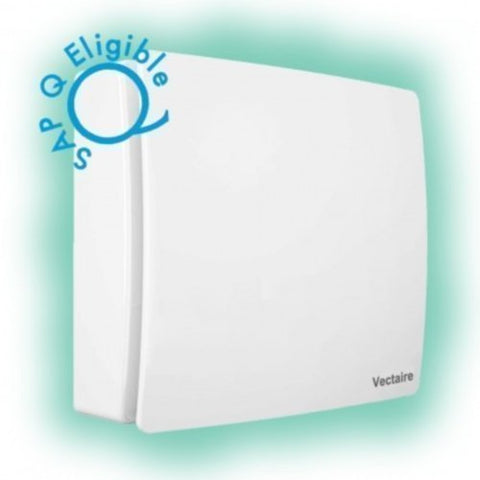

Vectaire Elix ELX1003HDTLV 4" Centrifugal Continuous Extract Fan (low Voltage) SELV & Vectaire 100mm - 150mm DMEV White Cowl **BUNDLE**

  • £224.00


  • Energy efficient EC motor
  • Low Voltage
  • Provides low level continuous ventilation to control condensation
  • 3 speed centrifugal fan
  • Choice of 2 low speeds at installation
  • For wall or ceiling
  • For any domestic wet room
  • Low noise levels and running costs
  • Compliant with Building Regulations Parts L1 2010 and F 2010

General

  • exhausts directly to the outside or through long lengths of ducting (up to 15m)
  • runs continuously at pre-selected choice of two speeds (fixed at installation)
  • Speed 1 operates at 8 l/s (factory set)
  • Speed 2 operates at 14 l/s
  • anti-vibration gasket
  • easily removal, washable polypropylene filter
  • speed boosted to maximum (28 l/s) using integral pull cord or by:
    • remote switch/light switch
    • PIR sensor
    • DRH240 (dynamic remote humidistat)
  • energy saving ventilation
  • extremely low running costs
  • low carbon footprint
  • 5 years manufacturers warranty, 1 year parts and labour the remaining 4 years parts only
  • ELX1003HDTLV - 3 speed, continuous running, with comfort timer, humidistat and pull-cord - LOW VOLT (SELV)

Specification

  • shockproof, high quality technopolymer casing
  • designed using latest wind tunnel technology and CFD simulations
  • profile increases the fluid dynamics
  • EC induction motor with thermal protection
  • 30,000 hour life motors with maintenance free and long life ball bearings
  • operates in ambient temperatures up to 40ºC
  • double insulated - no earth required
  • IPX4 - Splashproof rated - can safely be installed in Zones I and II

Compliance

  • Part L1 2010 of Building Regulations for enhanced energy saving capability
  • Part F 2010 of Building Regulations for reliable, efficient ventilation
  • IEC 60335-2-80, BT 2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
  • CE marked
  • SAP Q eligible
  • Energy Saving Trust Best Practice Compliant

The Vectaire VWC-W is a 4-6inch wall cowl in white, designed to reduce the negative impact that back draughts can have on fan extraction rates and flame retardant.

Size - 230mm x 210mm x 60mm
